Dimension (l x w x h):

330 x 60 x 60 cm

Gross Weight:

445 kg

ASTM D-1586

AASHTO T-206

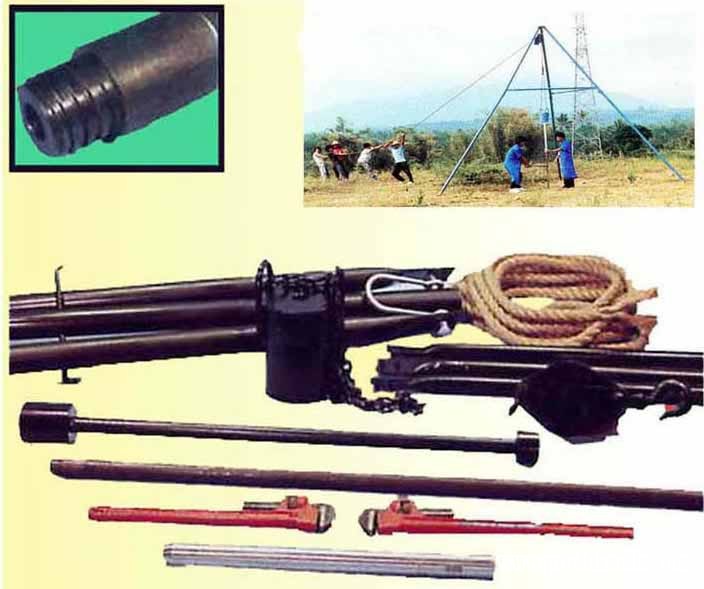

For driving a split barrel sampler to obtain a representative soil sample and measure the soil resistance to penetration.

SO-131

Split Barrel Sampler

Herdened machined steel, 1 3/8" i.d., 18" length

1 Set

SO-132

Sampling Rod

Steel pipe, 1.5 m length

20 Pcs

SO-133

Drive Weight Assembly

Consist of

SO-133.1

Hammer

Steel, 63.5 kg weight

1 Pc

SO-133.2

Anvil

Machined Steel

1 Pc

SO-133.3

Guide Rod

Steel, 76.2 cm drop height

1 Pc

SO-134

Tripod Assembly

Consist of

SO-134.1

Tripod Stand

Steel pipe

1 Pc

SO-134.2

Pulley

20 cm dia

1 Pc

SO-134.3

Rope

3/4" dia x 15 mtr

1 Rol

SO-137

Vertical Guide

Machined Steel

1 Pc

GE-739

Pipe Wrench

24" length

2 Pcs
