Dimension (l x w x h)

: 220 x 120 x 80 cm

Gross Weight

: 500 kg

ASTM D-3441
For determining cone resistance and friction resistance of soil layers.

SO-211

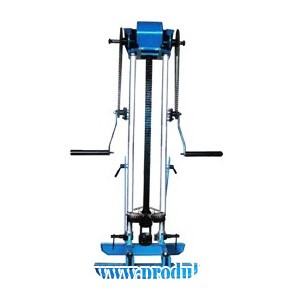

Press-in Apparatus

Steel construction, manually operated 5 tons capacity.

1 Set

SO-202A

Sounding Rod

Machined steel, 36 mm o.d., 1 mtr effective length, tappered thread

20 Pcs

SO-203

Plunger Rod

Round bar, 15 mm dia, 1 mtr length.

20 Pcs

SO-204

Adaptor

Consist of

SO-204.1

Push Adaptor

Machined steel

1 Pc

SO-204.2

Pull Adaptor

Machined steel

1 Pc

SO-205

Spiral Anchor

Consist of

SO-205.1

Spiral Anchor

Machined steel, elded 1.5 mtr length

4 Pcs

SO-205.2

Handle and T-piece

Machined steel, welded

1 Set

SO-206A

Mantel cone

Precision machined steel, hardened, tappered thread, 60^o angle, 35.7 mm dia.

1 Pc

SO-207A

Friction cone

Precision machined steel, hardened, with friction jacket, tappered thread, 60^o angle, 35.7 mm dia.

SO-208

Wrenches Set

Pile wrench (2), adjustable wrench (1), spanner wrench (1), allen key (1), screw driver (1), oil can (1), steel brush (1), piston wrench (1), seals tape (2), oil seals (2), steel box (1)

1 Set

SO-219

Fasten Press

Beam Cannal

Consist of

SO-209.1

Long Fasten Press

1.8 mtr length, 12 cm width

2 Pcs

SO-209.2

Short Fasten Press

1.2 mtr length, 15 cm width

2 Pcs

GE-671

Manometer

60 kg/cm² capacity

1 Pc

GE-675

Manometer

500 kg/cm² capacity

1 Pc
